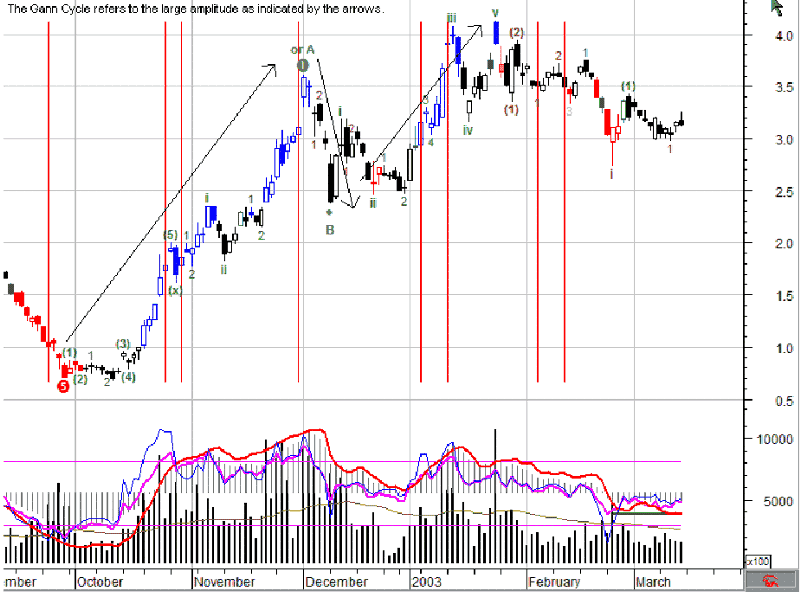

AO Auto Gann Cycles: This indicator plots the Gann Cycles for the specified sensitivity on the price window. There is a selection of angle set, 30° or 45°, it drives the other angles to be displayed. As the previous one, set alike the display.

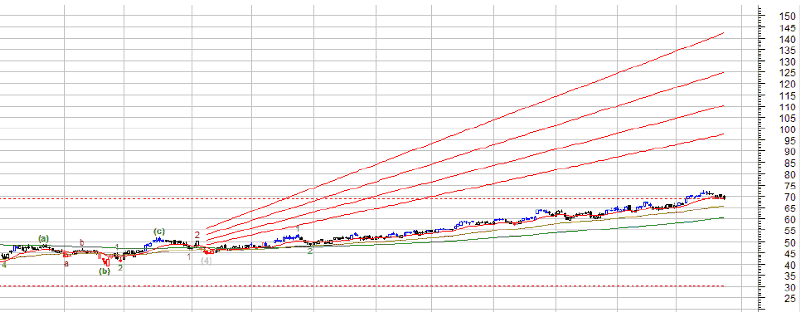

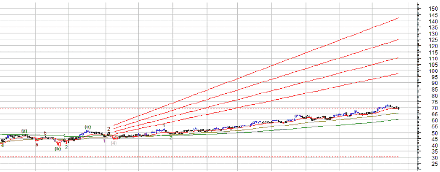

AO Auto Gann Fan: This indicator displays the Gann angles based on the trend for the selected sensitivity. It needs three swing points, the origin is the oldest point and the angles divide the distance between the other two points, dividing in eights. Only the most conservative angles are shown, no more than 4. Another parameter is the choice of using the close or the high and low.

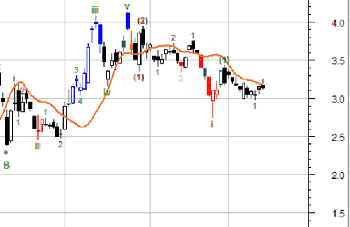

AO DMA: This indicator is a displaced moving average to help locating the end of a wave 5 in a T2 type of setup. There are three parameters: periods, forward displacement and data array (i.e. AO ZZ or the close of the bar).

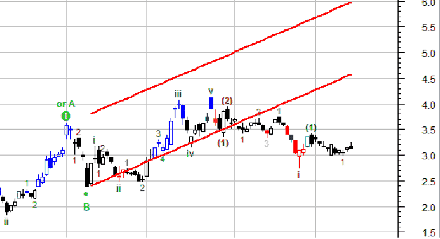

AO Elliott Channels (W3W4): This indicator will plot the channel for a wave 3 or a wave 4 for the specified sensitivity. Shown here is the sensitivity of 34% or waves labelled A and B in light green. When the price moves out of the channel, the trend is either loosing or gaining momentum (depending which side of the channel is crossed). The parameter for this indicator is sensitivity. The indicator will not plot a channel if there is not a wave 3 or a wave4 deploying; instead it will default to the latest resistance or support.

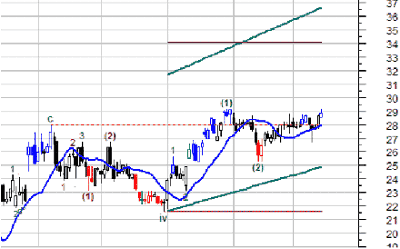

AO Elliott Channels (W5) and Wave 5 Target: This indicator plots the channel for a wave 5 as shown by the dark cyan lines. Shown at the same time is the Wave 5 Target in dark red and the displaced moving average in blue. This is a screenshot of the template Aget. The parameter for this indicator is sensitivity. The indicator will not plot a channel if there is not a wave 5 deploying; instead it will default to the latest resistance or support.

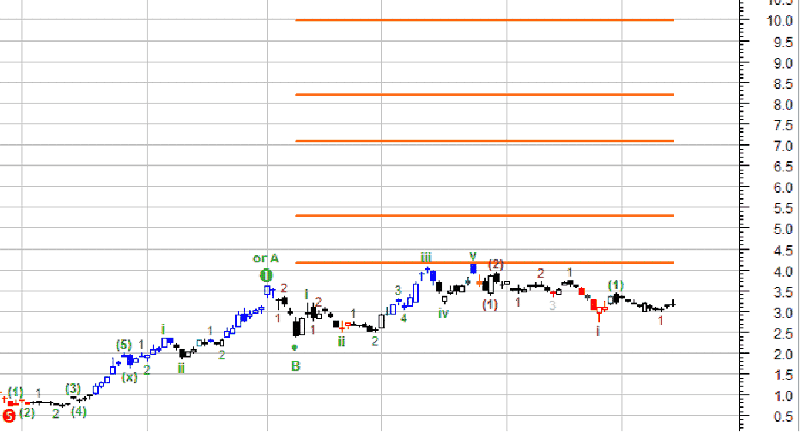

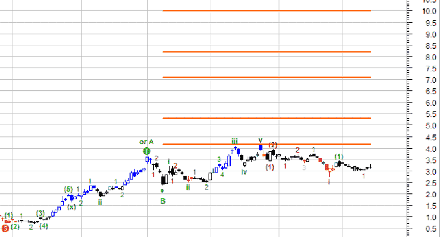

AO Fib Price at Date (P): This indicator will plot the Fibonacci price level from a selected date for a peak or trough and the selected sensitivity. There is a choice of type of projections, between 1- Alternate, 2- Corrective, 3- Extended and 4- Exponential. The lines start at the bar of the selected date. The Fibonacci ratios range from .382 to 2.618 and more with the Exponential type.
